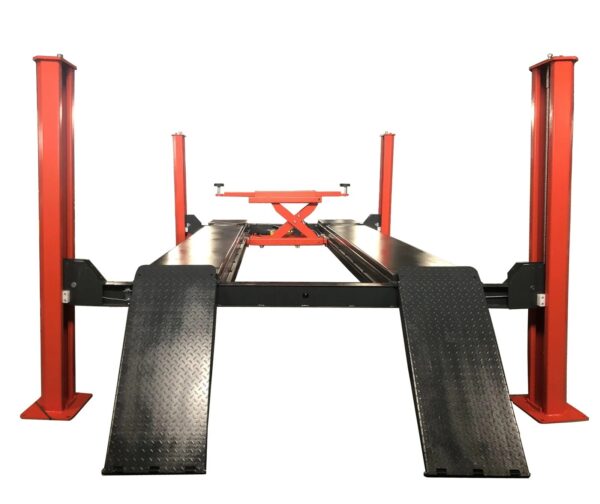

KT-4H110 Four Post Vehicle Lift 11,000lbs

Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

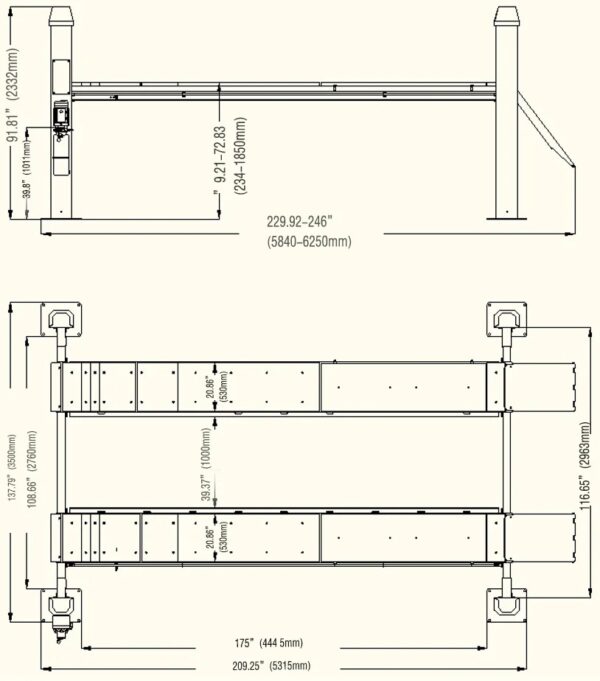

Lifting Capacity
11000 lbs. (4990KG )
Max. Lifting Height
92.52″ / 2350mm
Lifting Time
95s Up / 55s Down
Height of Posts
85.63″ / 2175mm

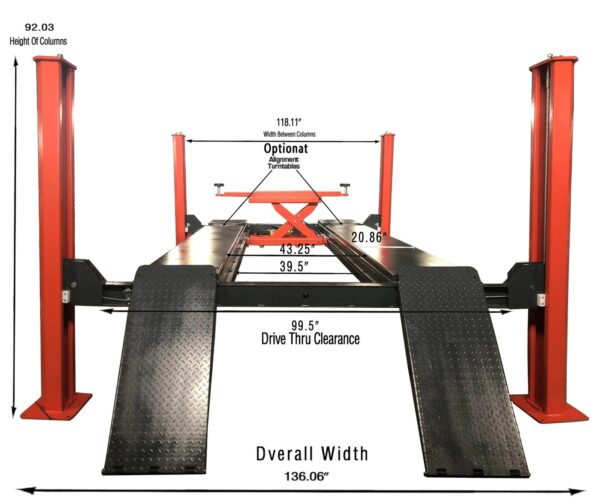

Width Overall
136.06″ / 3456mm
Length Overall
245.31″ / 6231mm (with Ramps)
Inside Columns
118.11″ / 3000mm
Min. Runway Height
9.3″ / 236mm
Motor
220VAC/60HZ/1PH
Net Weight
4850lbs / 2200KG
